• Wheels, 18" (45.7 cm) chromed aluminum includes 18" x 8" (45.7 cm x 20.3 cm) steel spare wheel. (Requires 3500HD single rear wheels.)
• Tires, LT265/70R18E all-season, blackwall (Requires single rear wheels.)
• Tire, spare LT265/70R18E all-season, blackwall (Requires single rear wheels.)
• Wheelhouse liners, rear (Not available with dual rear wheels.)
• Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door
• Bumper, front, body-color
• Bumper, rear body-color with bumper CornerSteps
• CornerStep, rear bumper
• LPO, Assist steps, chromed tubular, 6" rectangular (dealer-installed) (May be substituted with (VXJ) assist steps, LPO. (VXH) is deleted when (VXJ) assist steps, LPO is specified.)
• Moldings, bodyside, chrome
• Headlamps, high intensity discharge (HID) projector-beam with GMC signature LED lighting
• Fog lamps, front, halogen
• Lamps, cargo area, cab mounted with switch on center switch bank
• LED Lighting, cargo box with switch on center switch bank
• Mirrors, outside heated power-adjustable vertical trailering, memory-equipped, upper glass, power-folding and manual extending, chrome; includes integrated turn signal indicators, consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp
• Glass, deep-tinted
• Window, power, rear sliding with rear defogger (Not included when (VYU) Snow Plow Prep Package is ordered.)
• Door handles, chrome
• Tailgate and bed rail protection caps, top
• Tailgate, EZ-Lift and Lower
• Remote Locking Tailgate
• Bed Liner, Spray-on Pickup box bed liner consisting of high pressure, chemically bonded, sprayed-on polyurea & polyurethane liner formulation. Liner is permanently bonded to the truck bed providing a water tight seal. Includes embossed Denali logo on front bed wall. The textured, non-skid surface is black in color and robotically applied. Spray-on liner covers entire bed interior surface below side rails, including tailgate, front box top rail, gage hole plugs and lower tie down loops. (Not available with (VZX) bed liner, LPO.)
• Cargo ties downs (4), movable upper

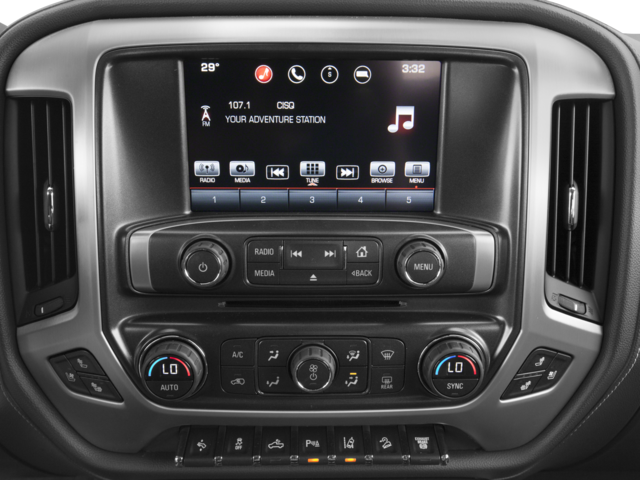

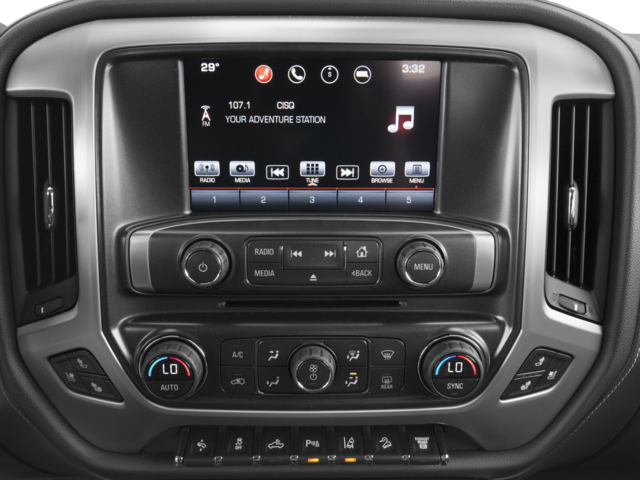

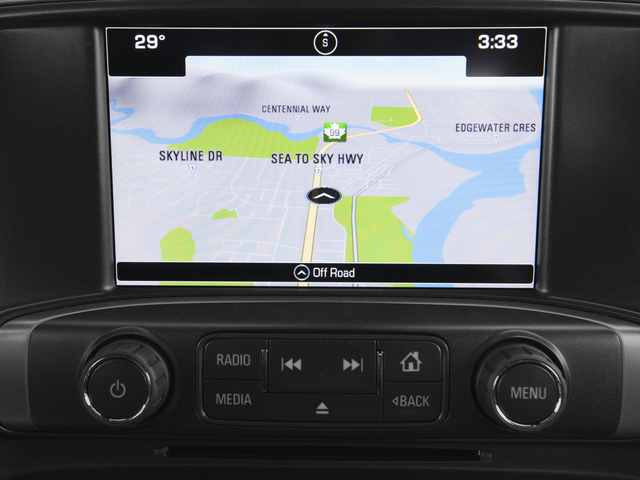

• Audio system, 8" Diagonal Color Touch Screen Navigation with IntelliLink, AM/FM/SiriusXM, HD Radio with USB ports, auxiliary jack, Bluetooth® streaming audio for music and most phones, advanced phone integration featuring Apple CarPlay, Pandora Internet radio and voice-activated technology for radio and phone (Included with (PCH) Duramax Plus Package.)
• Single-slot CD/MP3 player (Replaced by (U42) rear seat DVD/Blu-Ray Entertainment Package when (U42) is ordered.)
• SiriusXM Satellite Radio is standard on most 2016 GM models. Enjoy a 3-month XM Select+ trial with 130 channels including commercial-free music, plus news, talk, sports and comedy. Every trial comes with free online listening, which lets you take all your favorite programming anywhere. Listen on your computer, smartphone or tablet to find your sound. (The use of the SiriusXM Canada radio service constitutes acceptance of our Customer Agreement available at siriusxm.ca/terms and are used under license. If you decide to continue service after your trial, the subscription plan you choose will automatically renew thereafter and you will be charged according to your chosen payment method at then-current rates. Fees and taxes apply. To cancel you must call us at 1-877-209-0079. All fees and programming subject to change.)
• Radio, HD
• Bose Sound with 6 speaker system (7 speaker system including subwoofer when ordered with bucket seats).
• Bluetooth® for phone personal cell phone connectivity to vehicle audio system
• Wireless Charging (Not compatible with all phones. Compliant batteries include QI and PMA technologies. Reference Mobile devices manual to confirm what type of battery it uses.)

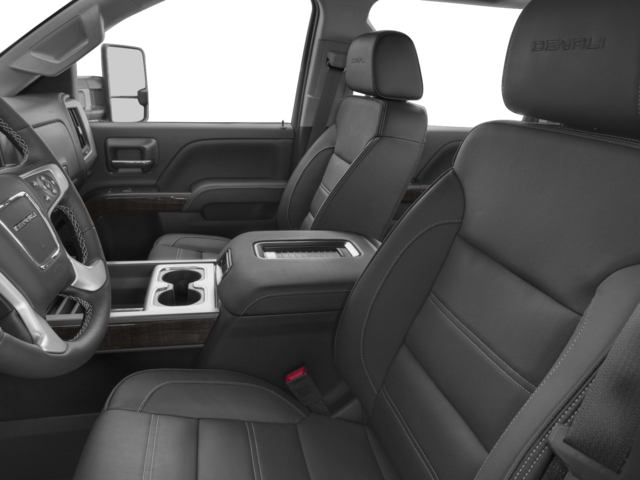

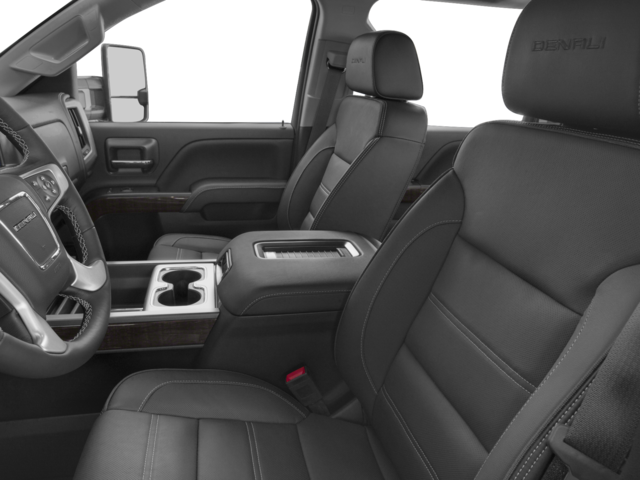

• Seats, front full-feature leather-appointed bucket with (KA1) heated seat cushions and seat backs. Includes 12-way power driver and front passenger seat adjusters, including 4-way power lumbar control, 2-position driver memory, adjustable head restraints, (D07) floor console and storage pockets and (K4C) wireless charging
• OnStar with 4G LTE and built-in Wi-Fi hotspot to connect to the internet at 4G LTE speeds includes 3GB or 3 months OnStar Data Trial (whichever comes first) (Available 4G LTE Wi-Fi requires compatible mobile device, active OnStar subscription and data plan after trial.)
• Seat trim, Leather-appointed front seats
• Seating, heated and vented perforated leather-appointed front bucket

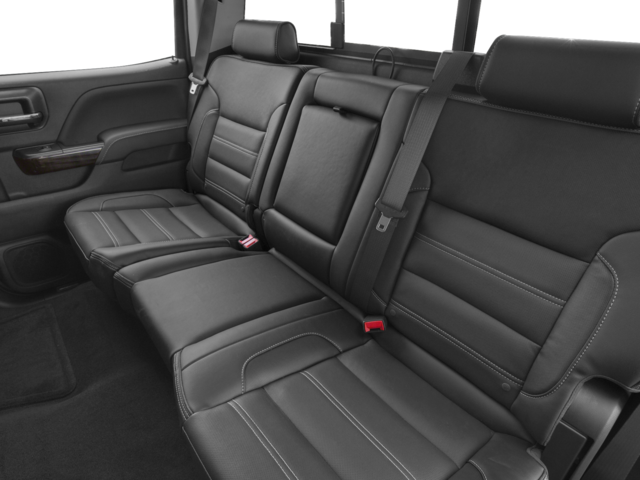

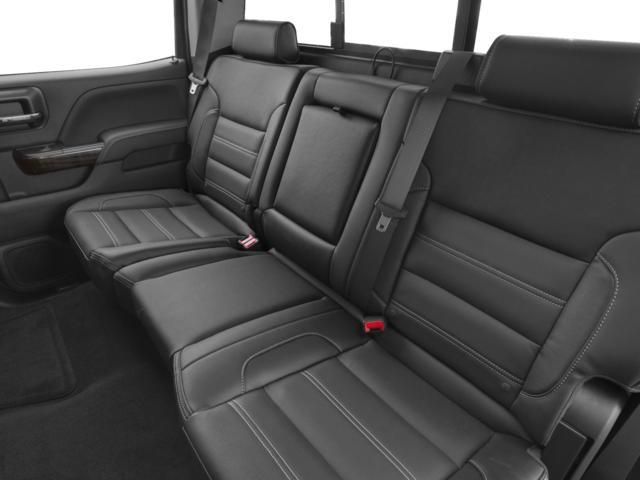

• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)

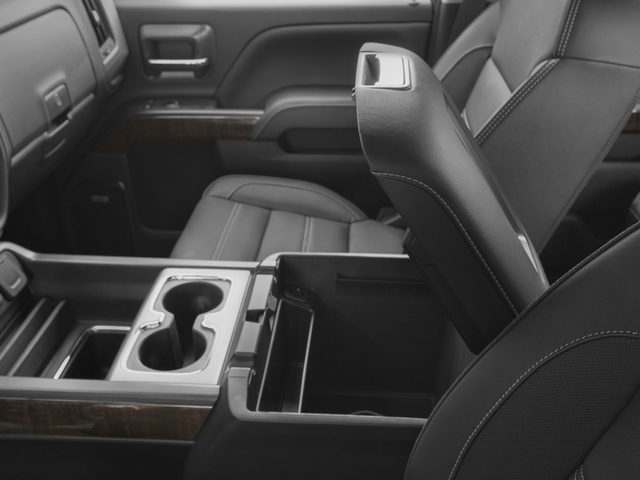

• Console, floor mounted, reconfigurable with cup holders, cell phone storage, power cord management, hanging file holder capability and (K4C) wireless charging
• Floor covering, color-keyed carpeting
• Floor mats, color-keyed carpeted first and second row
• Steering column, manual Tilt-Wheel and telescoping

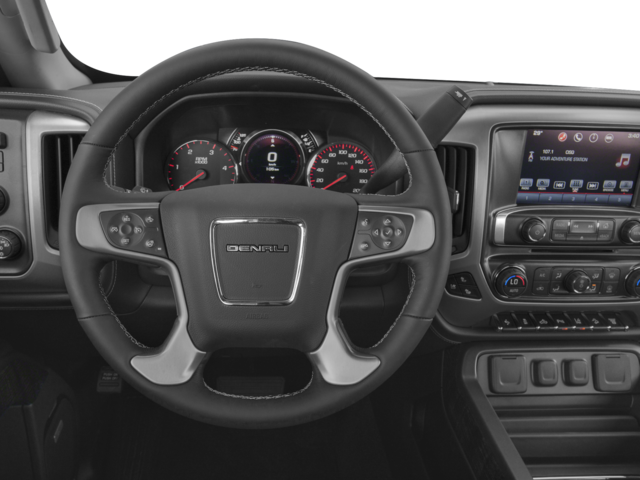

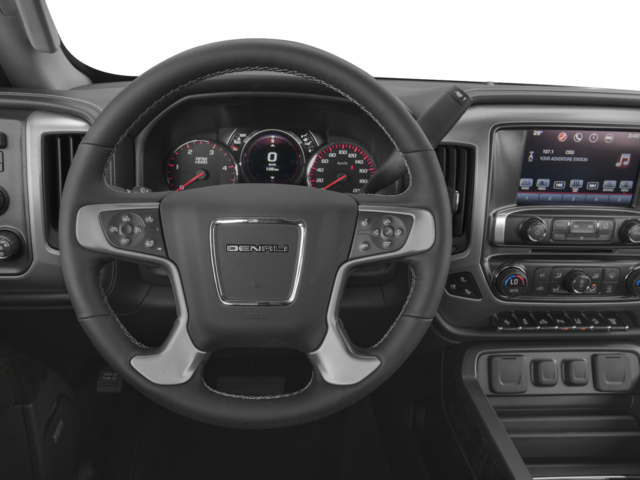

• Steering wheel, heated, leather wrapped with audio and cruise controls
• Steering wheel audio controls
• Display, customizable driver display, 8" multi-color configurable
• Windows, power with driver express up and down and express down on all other windows
• Door locks, power
• Remote Keyless Entry
• Remote vehicle starter system
• Pedals, power-adjustable
• Cruise control, steering wheel-mounted
• Universal Home Remote (Not included when (VYU) Snow Plow Prep Package is ordered.)
• Theft-deterrent system, unauthorized entry
• Air conditioning, dual-zone automatic climate control
• Defogger, rear-window electric
• Power outlet, 110-volt AC
• Mirror, inside rearview auto-dimming
• Visors, driver and front passenger illuminated vanity mirrors
• Assist handle, front passenger and driver on A-pillars
• OnStar Guidance Plan for 6 months including Automatic Crash Response, Stolen Vehicle Assistance, Roadside Assistance, Turn-by-Turn Navigation and more (trial excludes Hands-Free Calling) (Visit www.onstar.com for coverage map, details and system limitations. Services may vary by model and conditions. Advanced Diagnostics on 1500 models only.)

• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Air bags, single-stage frontal and thorax side-impact, driver and front passenger, and head curtain side-impact, front and rear outboard seating positions (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Front and Rear Park Assist, Ultrasonic
• Rear Vision Camera with dynamic guide lines

DURAMAX PLUS PACKAGE

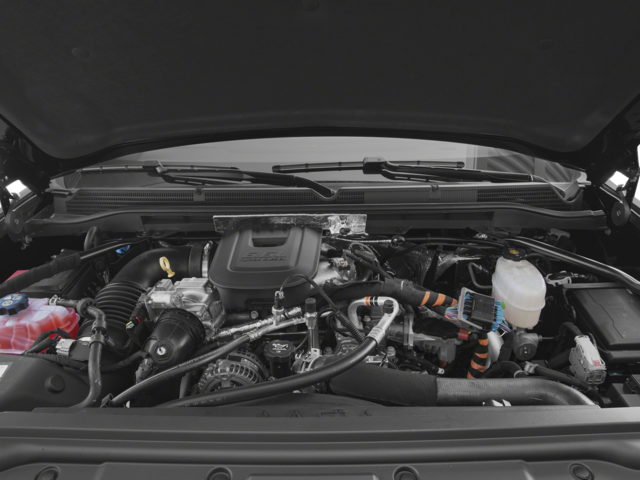

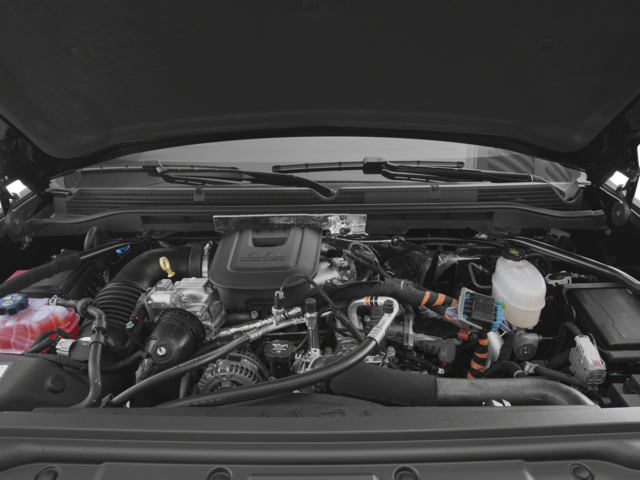

• includes (LML) Duramax 6.6L Turbo Diesel V8 engine
• (MW7) Allison 1000 6-speed automatic transmission and (Y65) Driver Alert Package

5SA PREFERRED EQUIPMENT GROUP

• includes standard equipment

TRAILERING WIRING PROVISIONS, FOR CAMPER, FIFTH WHEEL AND GOOSENECK TRAILER

• includes additional 7-way wiring harness is located at the rear of the pickup box attached to the rear frame cross member

• Duramax Plus Package: Duramax 6.6L Turbo Diesel V8 Engine; Allison 1000 6-Speed Automatic Transmission with Overdrive
• Driver Alert Package: Forward Collision Alert; Lane Departure Warning
• Preferred Equipment Group 5SA: EZ-Lift and Lower Tailgate; Leather Wrapped Heated Steering Wheel; Chrome Door Handles; Rear Vision Camera with Dynamic Guide Lines; Rear 60/40 Folding Bench Seat (folds Up); Perforated Leather-Appointed Seat Trim; Remote Vehicle Starter System; Power Sliding Rear Window with Defogger; Ultrasonic Front and Rear Park Assist; Front Body-Color Bumper; Electric Rear-Window Defogger; Unauthorized Entry Theft-Deterrent System; AM/FM/SiriusXM Radio with IntelliLink and Navigation; Trailering Equipment; 110-Volt AC Power Outlet; Front Halogen Fog Lamps; Remote Locking Tailgate; 150 Amps Alternator; Steering Wheel Audio Controls; Universal Home Remote; Color-Keyed Carpeting Floor Covering; Power Windows; OnStar Guidance Plan For 6 Months; 8" Multi-Color Customizable Driver Display; Remote Keyless Entry; LT265/70R18E AS BW Tires; Electronic Shift Transfer Case; Single-Slot CD/MP3 Player; Color-Keyed Carpeted 1st and 2nd Row Floor Mats; Deep-Tinted Glass; Front Full Feature Bucket Seats; Chrome Power-Adjustable Heated Outside Mirrors; Spare LT265/70R18E AS BW Tire; 18" Chromed Aluminum Wheels; Dual-Zone Automatic Climate Control; HD Radio; Manual Tilt-Wheel/telescoping Steering Column; Driver and Front Passenger Visors; Front Frame-Mounted Black Recovery Hooks; OnStar with 4G LTE; Rear Body-Color Bumper with Bumper Cornersteps; Auto-Dimming Inside Rearview Mirror; Power Adjustable Pedals; Rear Wheelhouse Liners; Heated and Vented Front Seating; Chrome Bodyside Moldings
• Power Sunroof
• Smoked Amber Roof Marker Lamps
• Trailering Wiring Provisions
• Android Auto/Apple CarPlay smart device mirroring
• OnStar 4G LTE mobile hotspot internet access
• Rear mounted camera
• Brake assist system
• Cruise control with steering wheel mounted controls
• Ventilated driver and front passenger seats
• Integrated navigation system with voice activation
• Keyfob remote start
• Heated steering wheel
• Heated driver and front passenger seats
• Leather front seat upholstery
• Primary monitor touchscreen
• Lane Keep Assist
• First-row sliding and tilting glass sunroof with express open activation sunshade
• Driver seat power reclining
• lumbar support
• cushion tilt
• fore/aft control and height adjustable control
• Part-time 4WD
• Duramax 6.6L V-8 diesel direct injection
• intercooled turbo
• diesel
• engine with 397HP
• Duramax 6.6L V-8
• Front wireless smart device charging
• Smart device remote start
• Mechanical
• OnStar Guidance vehicle tracker with vehicle slowdown
• Bluetooth® wireless audio streaming
• Forward collision warning
• Dual-zone front climate control
• High-intensity discharge low and high beam headlights
• Immobilizer
• Bose speakers
• OnStar Guidance vehicle integrated emergency SOS system
• Bluetooth® handsfree wireless device connectivity
• Trailer brake controller
• Trailer sway control
• IntelliLink external memory control
• Pandora internet radio capability
• 5 USB ports
• StabiliTrak w/Proactive Roll Avoidance electronic stability control system with anti-roll
• Hill start assist
• Automatic climate control
• UltraSonic front and rear parking sensors
• LED daytime running lights
• Front fog lights
• Leather and metal-look steering wheel
• EZ Lift
• EZ Lower
• Manual rear child safety door locks
• Heated driver and passenger side door mirrors
• Power folding door mirrors
• Driver selectable steering effort
• Manual tilting steering wheel
• Manual telescopic steering wheel

• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 7050
• Curb Weight - Front (lbs): - TBD -
• Curb Weight - Rear (lbs): - TBD -
• Gross Vehicle Weight Rating Cap (lbs): 11000
• Gross Combined Wt Rating (lbs): 20500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13700
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1370
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 13700
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3425
• Maximum Trailering Capacity (lbs): 22600
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 7050
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 7050
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 51.00
• Shock Absorber Diameter - Rear (mm): 51.00
• Stabilizer Bar Diameter - Front (in): 1.31
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): - TBD -
• Rear Brake Rotor Diam x Thickness (in): - TBD -
• Tires
• Front Tire Order Code: QWF
• Rear Tire Order Code: QWF
• Front Tire Size: LT265/70R18E
• Rear Tire Size: LT265/70R18E
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 18 x 8.0
• Rear Wheel Size (in): 18 x 8.0
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: 16.00
• Steering Ratio (:1), At Lock: N/A
• Turning Diameter - Curb to Curb (ft): 56.1
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 167.70
• Length, Overall w/o rear bumper (in): 258.4
• Width, Max w/o mirrors (in): 80.51
• Height, Overall (in): 78.07
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 151.10
• Cab to Axle (in): 55.24
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 39.41
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 8.53
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 97.76
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 51.02
• Cargo Box (Area) Height (in): 21.22
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 76.3
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 64.84
• Front Hip Room (in): 60.73
• Second Head Room (in): 40.50
• Second Leg Room (in): 40.93
• Second Shoulder Room (in): 64.33
• Second Hip Room (in): 60.24
• Summary

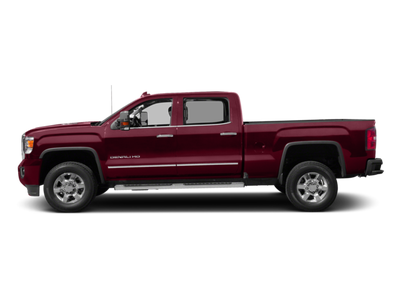

• Vehicle Name: GMC Sierra 3500HD
• Body Style: Crew Cab Pickup
• Body Code: E63
